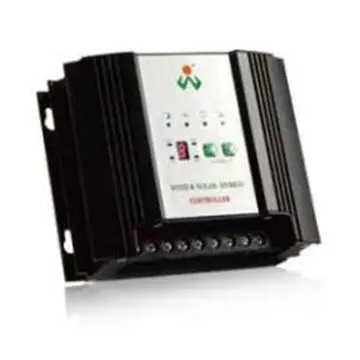

200w wind solar hybrid controller

FOB Reference Price:Get Latest Price
US $70-80 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
LS
Model Number:
LS WS 12 300w
Type:
controller, controller
Color:
Black
Certificate:
CE System Certification
SupplyAbility
SupplyAbility:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton
Port
Shanghai
Lead Time :
2-5 days

Product Introduction

Key Specifications/Special Features:

Product Introduction
The wind/solar hybrid controller is an intelligent equipment which is specially designed for wind/solar hybrid system. It can simultaneously control wind turbine and solar panel charge for battery safely and efficiently.

Product Parameters

 ParametersLS WS 12  300w
 Rated Battery Voltage 12V
 Rated Wind Turbine Input Power 300w
 Maximum Wind Turbine Input Power 450w
 Rated Solar Power 150w
 Wind Turbine Charge Shutoff Voltage 14.5V
 Wind Turbine Charge Recovery Voltage 13.2V
 PV Floating Charging Voltage 13.5V
 Battery Over Discharge Protection Voltage 10.8V
 Battery Over Discharge Recovery Voltage 12V
 Output Over Voltage Protection Point 16v
 Light Control On Voltage
(Factory Default)
 1V[Adjustable]
 Light Control Off Voltage
 (Factory Default)
 1.6V[Adjustable]
 Load 1 and Load 2
Rated Output Current
 10A
 Load 1 Output Control Mode
(Factory Default)
 3 Modes Selection
(Light Control On and Light Control Off)
 Load 2 Output Control Mode
(Factory Default)
 3 Modes selection
(Light Control On and Time Control 5 Hours Off)
 Ambient Temperature & Humidity Range -20~+55℃/35~85%RH( Without Condensation )
 Dimensions (L×W×H) 123×150×62mm
 Net Weight20 0.75kg
