Direct selling price of three phase permanent magnet generator is suitable

FOB Reference Price:Get Latest Price
US $2,250-2,813 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
LS
Model Number:
LS-10KGLM1
Type:
Motor
Rated Power:
10kg
Rated Voltage:
96v/120v/220v
Rated rotated speed:
170r/m
Top net weight:
180kg
Output Current:
AC
Protection grade:
IP54
Shell Material:
Carbon Steel
Permanent magnetic material:
Rare-earth NdFeB
Service Life:
More the 20 years
Generator:
3 phase permanent magnet synchronous generator
SupplyAbility
SupplyAbility:
300 Piece/Pieces per Quarter
Packaging & Delivery
Packaging Details
Wooden box
Port
Shanghai, Ningbo, Shenzhen
Lead Time :
1-7Day
Video Description
Product Details

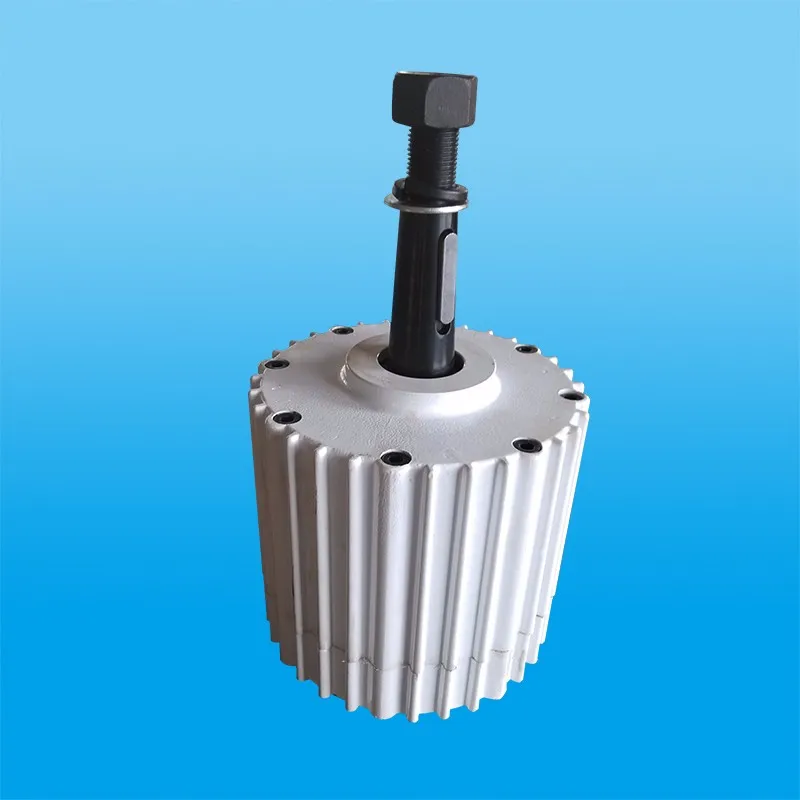

Direct selling price of three phase permanent magnet generator is suitable


Features

Low start up speed

Low cogging torque

Suitable for both Horizontal and Vertical Turbines

Gearless, direct drive, low RPM generator

Alternator generator Type permanent magnet generator

For use in all environments

Excellent heat dissipation

Designed for 20-year operation life

Product Parameters
Model
NE-10kw
Rated Power(w)
10kw
Max Power(w)
13kg
Rated Voltage(v)
96V/120V/220v
Rated rotated speed(r/m)
170r/m
Top net weight(kg)
180kg
Output Current
AC
Start Torque(N*M):
1.28Nm
Rated Torque(N*M):
561.7Nm
generator
3 phase permanent magnet synchronous generator
Insulation Class:
F
Service Life:
More Than 20 years
Bearing
HRB or for your order
Shaft Material
Iron
Shell Material
Carbon Steel
Permanent Magnet Material
Rare Earth NdFeB
Protection Grade
IP54
Lubrication
Lubrication Grease
Working temperature
-40℃ - 80 ℃

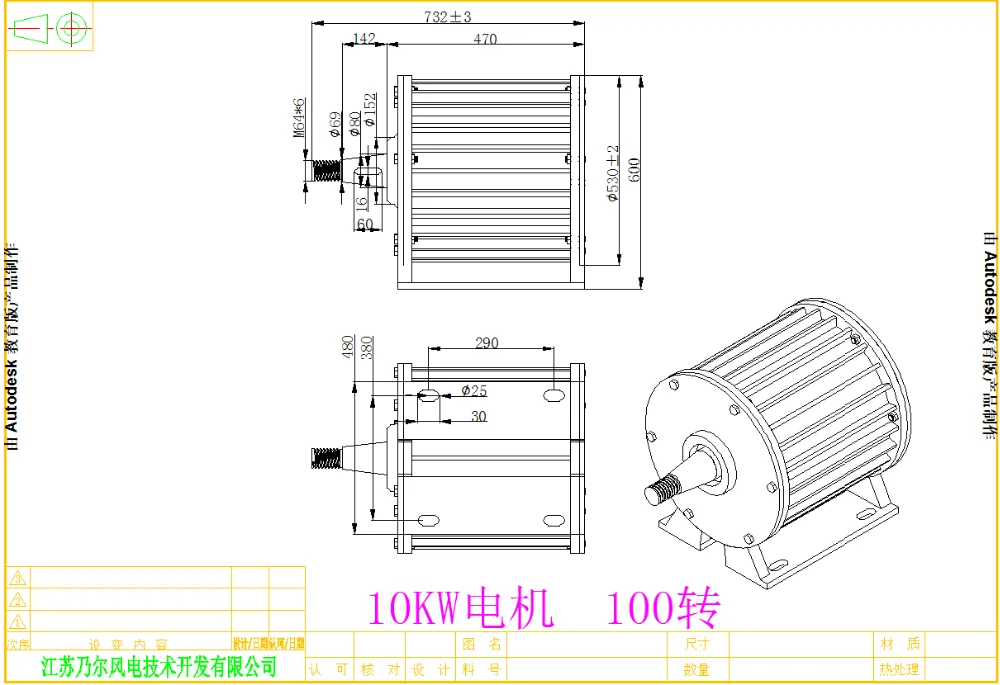

Tectonic Map
FAQ

1) What are the major components of a standalone wind energy system?

Ans.: A standalone wind energy system usually consists of a small wind turbine and its supporting structure (e.g. pole fixed in position by guywires), a charge controller and a battery bank If the loads demand AC supply, an inverter for converting DC to AC will be necessary

2) Are small wind turbines noisy?

Ans.: Small wind turbines usually have DC generators, and they need to rotate rather fast in order to produce sufficient output This causes a bit of noise when the wind is strong. Depending on the our special design, our turbines are quieter than the others

3)How can I connect small wind turbine to the AC distribution system of a building or a site?

Ans.: A grid-tie inverter with specifications meeting the guidelines given in the technical guidelines on grid connection of small scale renewable energy power systems and the requirements of the power company, is needed for converting DC output of the small wind turbine into AC for grid connection

4)Do I have to lower a small wind turbine when typhoon is approaching?

Ans.: If small wind turbine has a low survival wind speed, you may have to lower it when a typhoon is approaching On other hand, if survival wind speed is high and if the manufacturer suggests that there is no need to lower the turbine, then such kind of procedure will not be necessary
